No. 20

The log cutting line is designed to cut 1.2m logs. The RP01 log turning table is used to center the logs, placing them in the optimal cutting position before feeding them with a spiked chain to the vertical edger. The AS223 machine cuts the sides of the workpiece with four circular saws. The TP06 cant receiving table holds the cut log and the slabs while transporting it for further processing, and drops the slabs at the right moment onto the AS852 slab conveyor. The workpiece is then transported to the AS420 centering conveyor . The sides of the centered workpiece are milled on the AS422 log canter machine. The sides of the machined workpiece are cut and then transported to the AS420VA roller conveyor with a clamp to a ruler . In the AS420VA machine, the workpiece is pressed against the ruler before being fed to the AS256 machine. In the multi-rip saw machine, the desired number and thickness of boards are cut. The container boards are automatically dropped by the AS851 conveyor with cross drop onto the JT12 belt conveyor.

The processing of the slabs takes place on another line. They are transported to the AS250 machine by the AS852 slab conveyor. They are centered on the centering conveyor before being fed to the AS422 log canter machine. In the AS422 machine, the sides of the workpiece are milled. Next, the workpiece is transported to the two-vertical shaft multi-saw machine by toothed rollers. The AS243 machine cuts the final desired product, i.e. container boards. The container boards are cut to the desired length and transported onto the JT12 belt conveyor. All chips and scraps are transported by belt conveyors JT02, JT03, JT04.

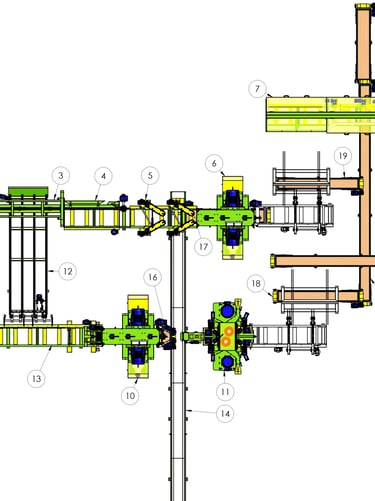

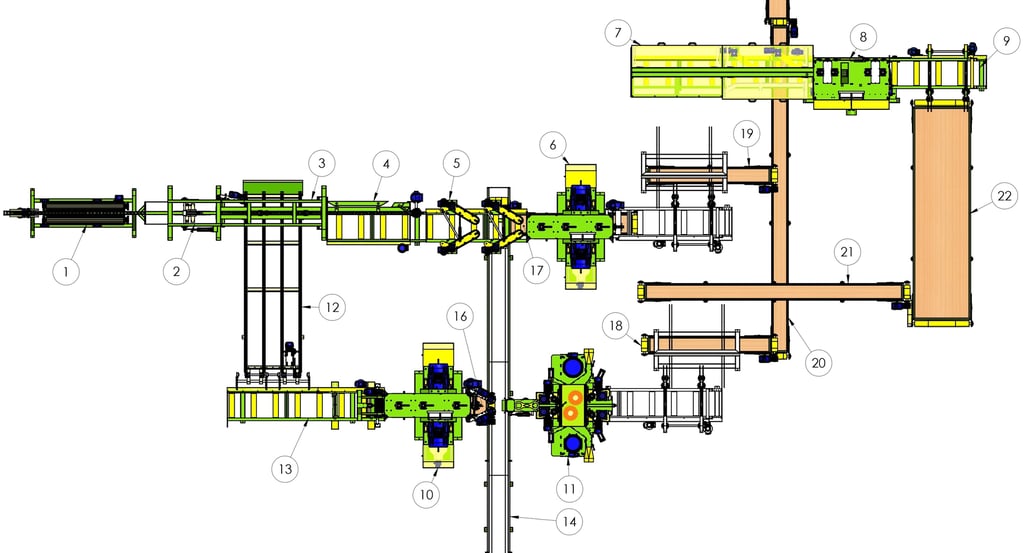

List of equipment

Videos

1. RP01 - Log turning table

2. AS223 - Vertical edger

3. TP06 - Cant receiving table

4. TP03 - Cant overturn table

5. AS420 - Centering conveyor

6. AS422 - Log canter machine

7. AS420VA - Roller conveyor with a clamp to a ruler

8. AS256 - Multi-rip saw machine

9. AS851 - Conveyor with cross drop

10. AS422 - Log canter machine

11. AS243 - Multi-rip saw machine

12. AS852 - Slab conveyor

13. AS250 - Centering conveyor

14. JT02 - Belt conveyor

15. -

16. JT04 - Belt conveyor

17. JT04 - Belt conveyor

18. JT03 - Belt conveyor

19. JT03 - Belt conveyor

20. JT03 - Belt conveyor

21. JT03 - Belt conveyor

22. JT12 - Belt conveyor

No. 20 line equipment
